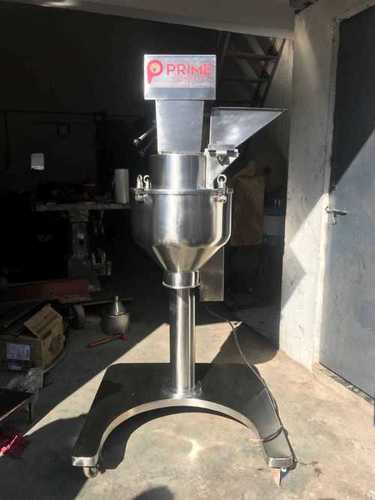

PRIME MACHINERY our customers effectively working Multi Mill. It is utilized in chemical, cosmetic, pharmaceutical, food and other industries for catering applications like pulverization and granulation. In addition to this, it is also used in industries like detergents, fertilizers, insecticides, resins and plastics. The mill functions on the principle of variable force swing beaters that has impact edges and two knives which rotates within a selected screen for getting the desired size reduction. With the help of reversible switch, the direction of the beaters can be easily changed. The Multi Mill can be dismantled effortlessly for its precise cleaning.
Machine Model | Multi Mill |
Output | 50 to 200 kg./Hr. |
Rotor Assembly Diameter | 250 mm. Approx. |
Rotor Speed | 780/1500/2330/3000 RPM |
Beaters | 12 nos. with knife and impact edges and 2 nos. Scraper |
Motor | Inner Diameter 265 mm/Height 140 mm |
Starter | "DOL" with reversible switch |
Material Charging Height | 1460 mm |
Material discharging Height | 760.5 mm |
