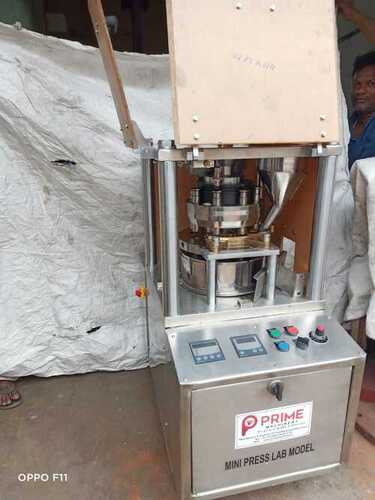

Rotary Tablet Press Machine

Rotary Tablet Press Machine

375000 INR/Unit

Product Details:

  • Type Tablet Pressing Machine
  • Material ss
  • Computerized No
  • Control Mode Automatic
  • Color As per required
  • Warranty 1 year
  • Supply Ability : 30 Unit Per Day
  • Click to view more
X

Price And Quantity

  • 1 Unit
  • 375000 INR/Unit
  • 3.00 - 5.00 INR/Unit

Product Specifications

  • No
  • 1 year
  • ss
  • Tablet Pressing Machine
  • As per required
  • Automatic

Trade Information

  • Ahmedabad
  • Cheque, Cash Against Delivery (CAD)
  • 30 Unit Per Day
  • 10 Days
  • Yes
  • Contact us for information regarding our sample policy
  • WOODEN BOX
  • Africa, Middle East, Western Europe, Eastern Europe, South America, North America, Central America, Australia, Asia
  • All India
  • MSME

Product Description

PRIME MACHINERY instrumental in providing an extensive collection of products as per the set industry norms. Reasons which have turned up to be the most preference of our valued patrons include

Description

Machine Type

16D

20D

26B

Type of Tooling

D

D

B

Number of Stations

16

20

26

Output‐ Tablets/Hr

13500 - 38400

17000 - 48000

23400 - 62400

Turret RPM (Max)

40 RPM

40 RPM

40 RPM

Max. Operating Pressure

100 KN

100 KN

60 KN

Max. Tablet Diameter

25 mm.

25 mm.

16 mm.

Max. Depth of Fill

20.5 mm.

20.5 mm.

17.5 mm

Upper Punch Penetration

1.5 to 8 mm.

1.5 to 8 mm.

1.5 to 8 mm.

Diameter of Die(mm.)

38.1

38.1

30.15

Diameter of Punch(mm.)

25.34

25.34

18.99

Length of Punch(mm.)

133.6

133.6

133.6

Power

3.0 H.P. x 1440 RPM x 3 Phase x 415 Volts





Overall Dimensions(mm.)

980 x 1020 x 1820





Net Weight (Kgs.)

1150
